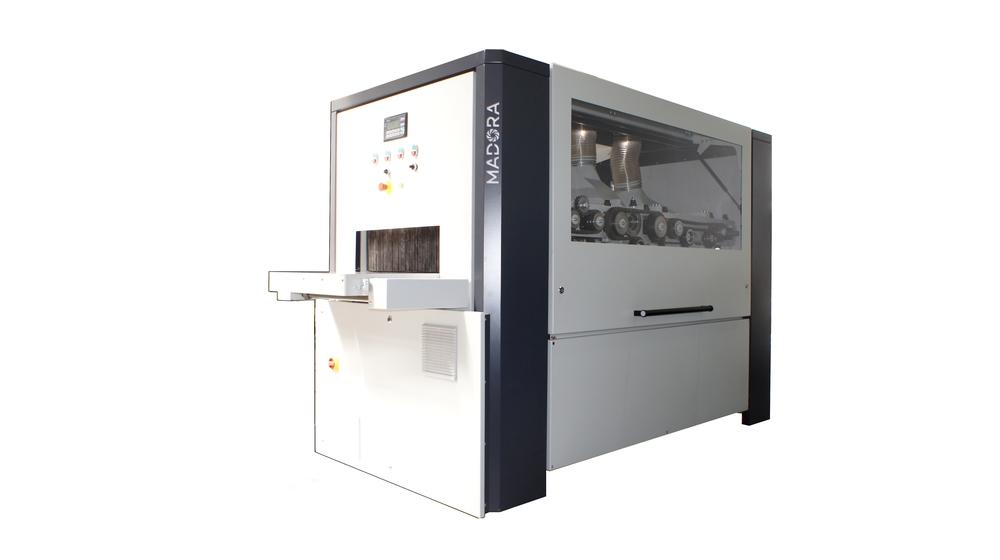

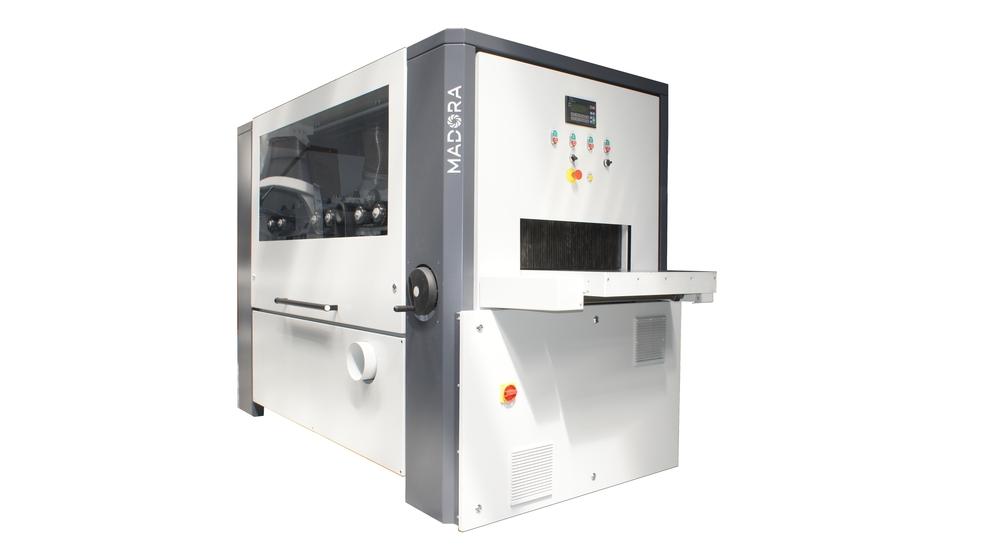

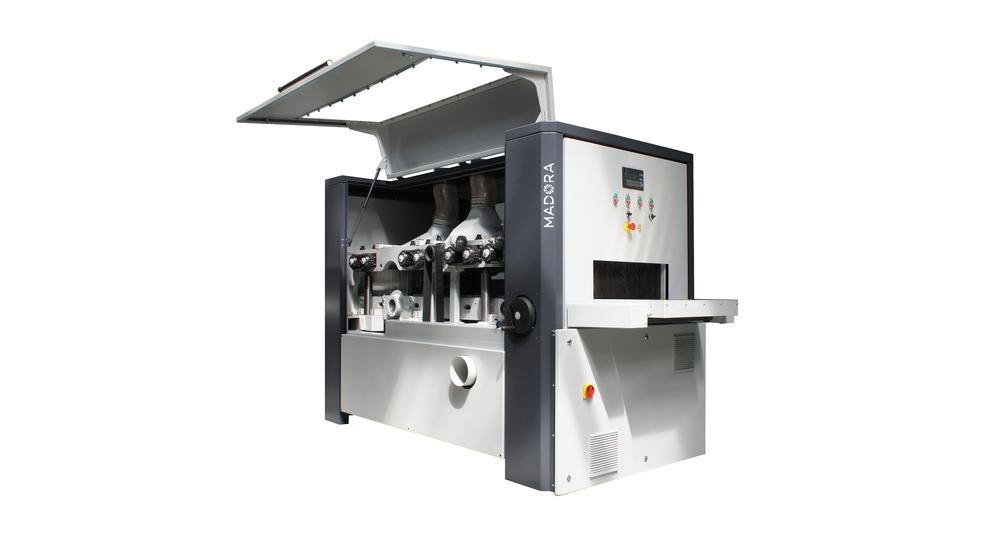

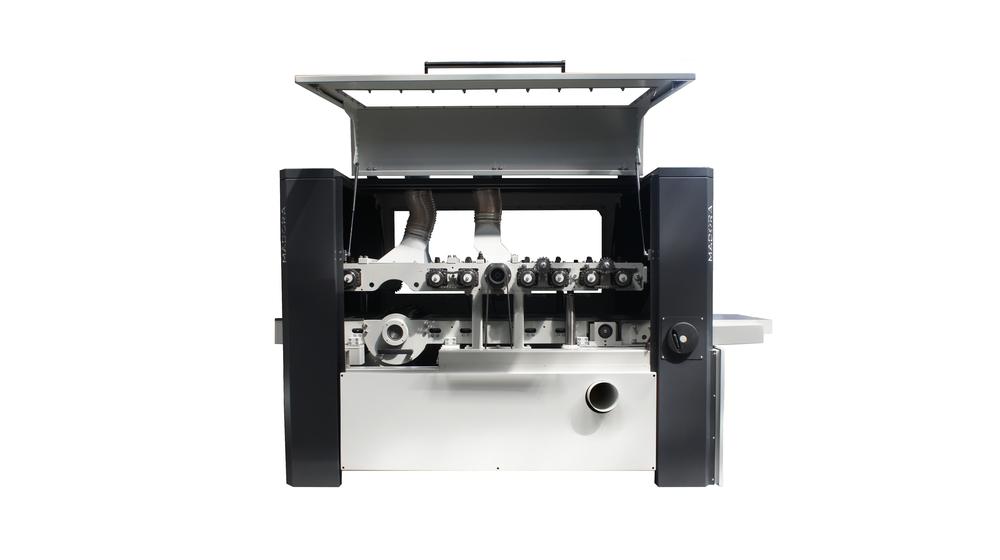

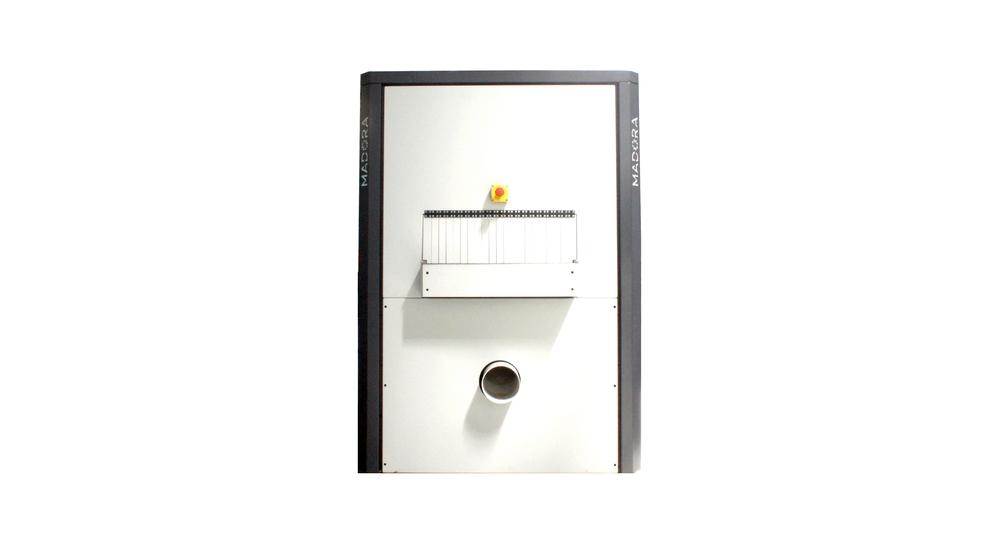

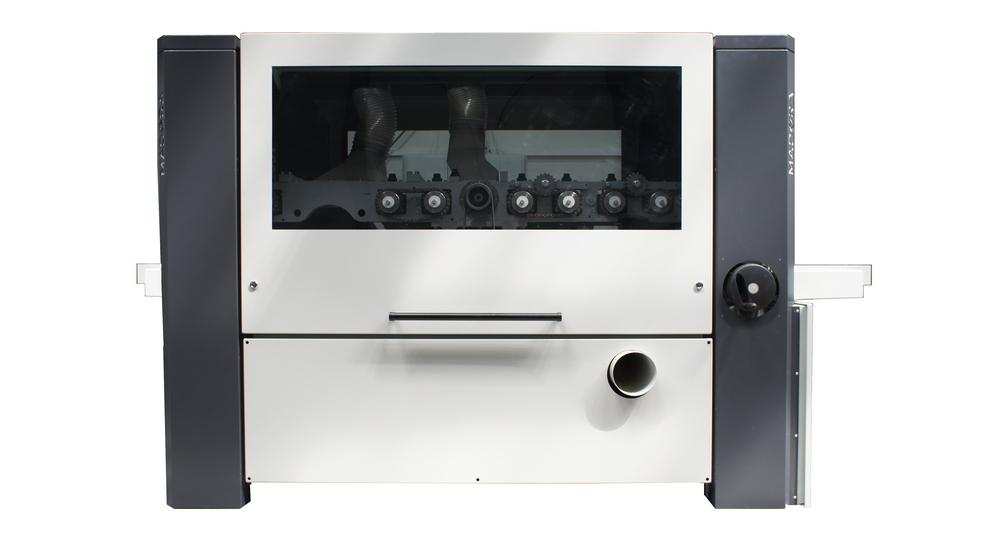

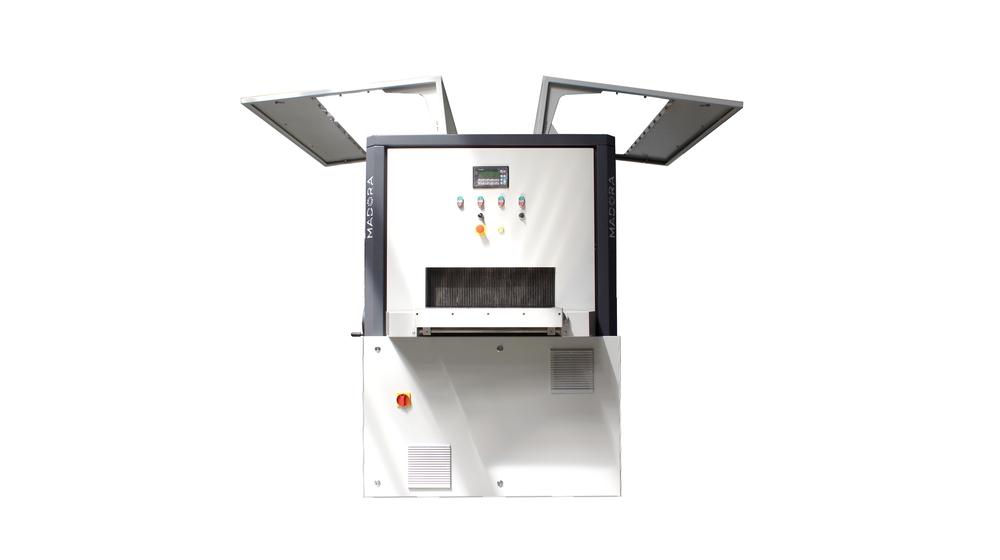

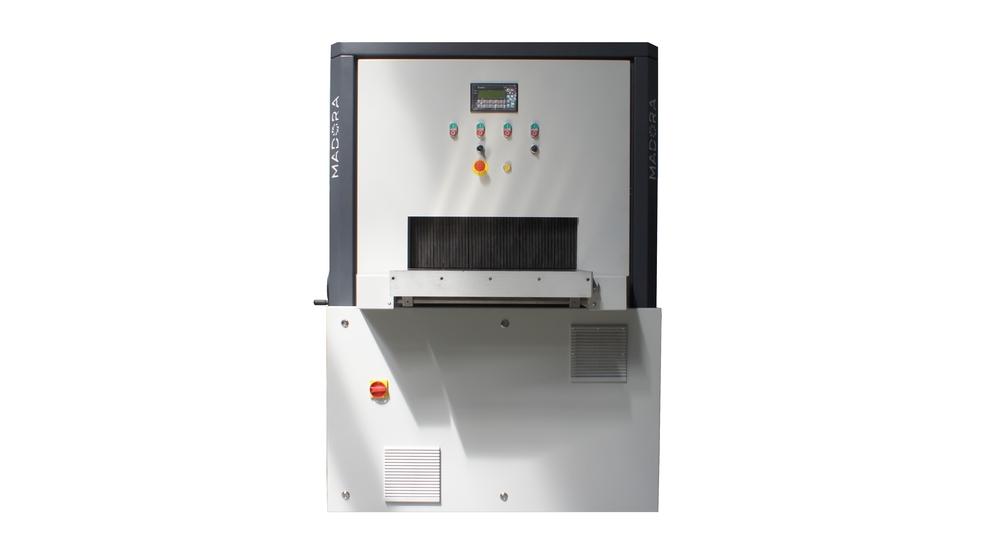

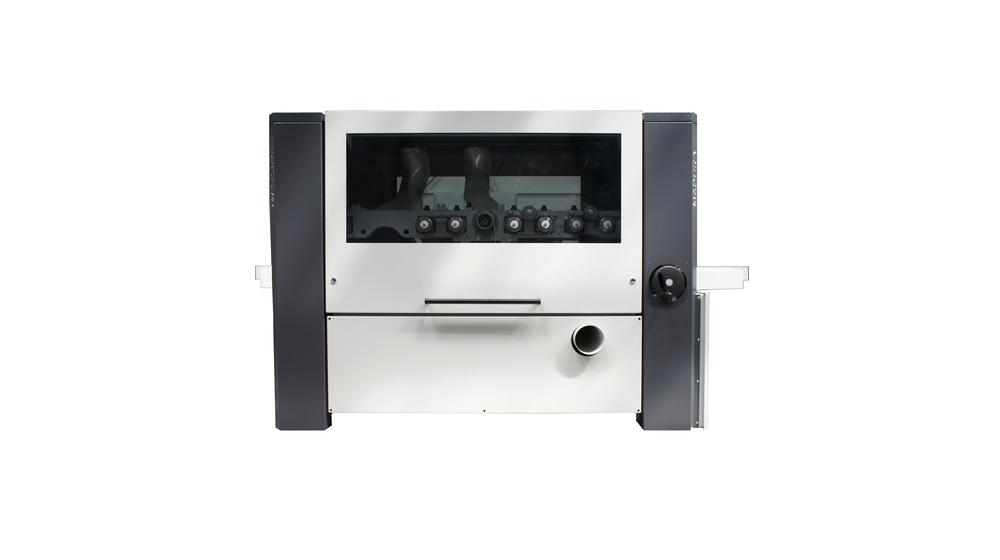

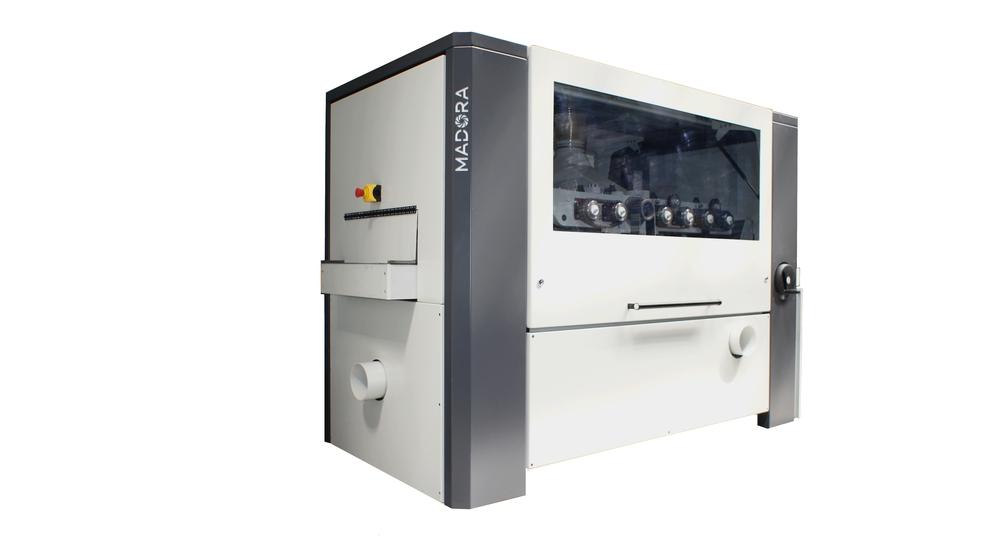

DYRA 630 Planing Machine
The DYRA 630 is a multifunctional combination machine for performing three machining processes in a single pass.
Its versatility and multipurpose nature are a result of its three machining zones:
- planing machine zone
- thicknessing machine zone
- multi-saw zone
Basic technical parameters:
|
NAME |
UNIT |
DYRA 630 |
|
MACHINE FUNCTIONS |
||
|
Planing machine |
|
YES |
|
Thicknessing machine |
|
YES |
|
Multi-saw |
|
YES |
|
OPERATING PARAMETERS |
||
|
Feed rate |
m/min |
4-20 |
|
Machining thickness range |
mm |
15 - 65 |
|
Extraction air demand |
m3/h |
3000 |
|
MACHINING PARAMETERS |
||
|
Minimum workpiece thickness |
mm |
15 |
|
Maximum workpiece thickness (with saws) |
mm |
60/75 |
|
Minimum workpiece length |
mm |
700 |
|
|
||
|
DYRA 630 DIMENSIONS |
|
|
|
Width |
mm |
|
|
Height |
mm |
|
|
Length |
||
|
WORK TABLE |
|
|
|
Machining width |
mm |
630 |
|
Table length |
mm |
2900 |
|
Table rollers, pcs. |
||
|
POWER SUPPLY |
|
|
|
Machine power |
kW |
63 |
|
|
||
|
CONTROLS |
|
|
|
Manual control |
|
|
|
|
|
|
|
ADDITIONAL EQUIPMENT |
|
|
|
Available shafts |
|
HSS/Tersa/Spiralny |
Basic technical specifications of the machining zones:
|
NAME |
UNIT |
DYRA 630 |
|
Planing machine |
||
|
Planing machine shaft type |
|
HSS/Spiralny/Tersa |
|
Shaft width |
mm |
640 |
|
Shaft machining width |
mm |
630 |
|
Shaft diameter |
mm |
122 |
|
Prędkość Shaft rotation speedwału |
obr/min |
4900 |
|
Maximum cutting thickness |
mm |
5 |
|
Drive motor power |
kW |
11 |
|
Extraction nozzle diameter |
mm |
160 |
|
NAME |
UNIT |
DYRA 630 |
|
Thicknessing machine |
||
|
Thicknessing machine shaft type |
|
HSS/Spiralny/Tersa |
|
Shaft width |
mm |
640 |
|
Shaft machining width |
mm |
630 |
|
Shaft diameter |
mm |
122 |
|
Shaft rotation speed |
obr/min |
4900 |
|
Maximum cutting thickness |
mm |
6 |
|
Drive motor power |
kW |
11 |
|
Extraction nozzle diameter |
mm |
160 |
|

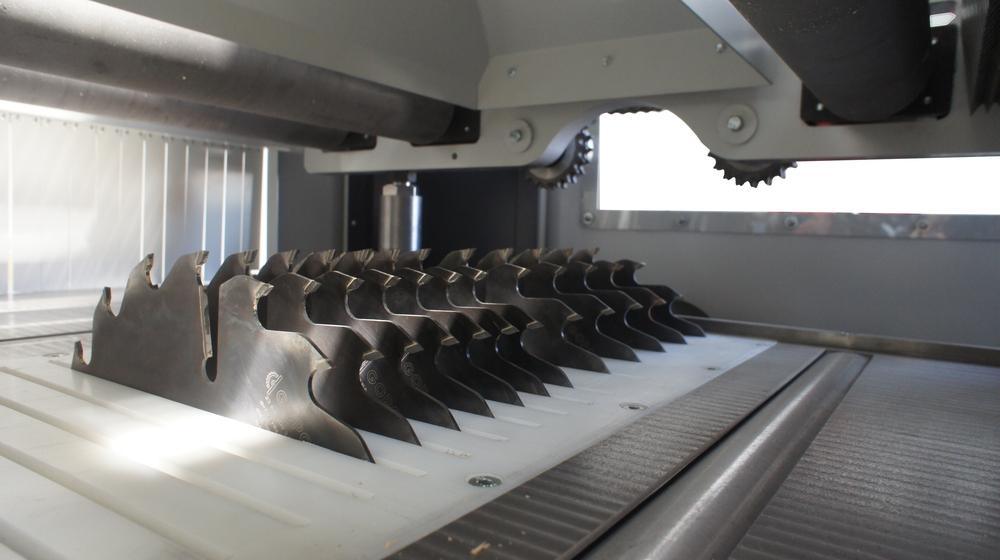

NAME |
UNIT |
DYRA 630 |
|
Multi-saw |
||
|
Saw spindle rotation speed |
obr/min |
3200 |
|
Shaft width |
mm |
640 |
|
Machining width |
mm |
630 |
|
Shaft diameter |
fi |
70 |
|
Minimum saw blade spacing |
mm |
12 |
|
Spacing of end saws |
mm |
590 |
|
Maximum number of saws |
szt. |
10 – 15 |
|
Maximum saw diameter |
mm |
300 |
|
Extraction nozzle diameter |
mm |
200 |
|
Drive motor power |
kW |
37 |
