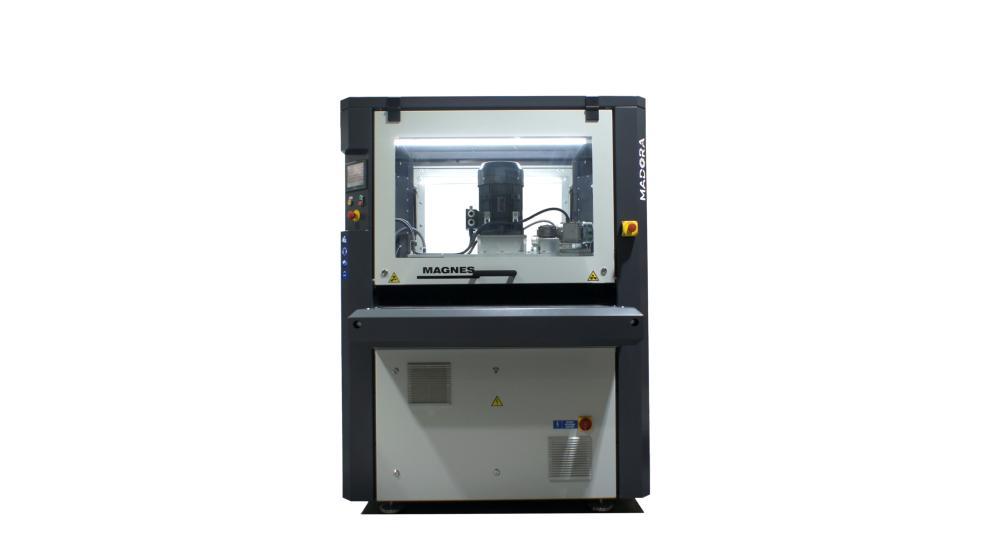

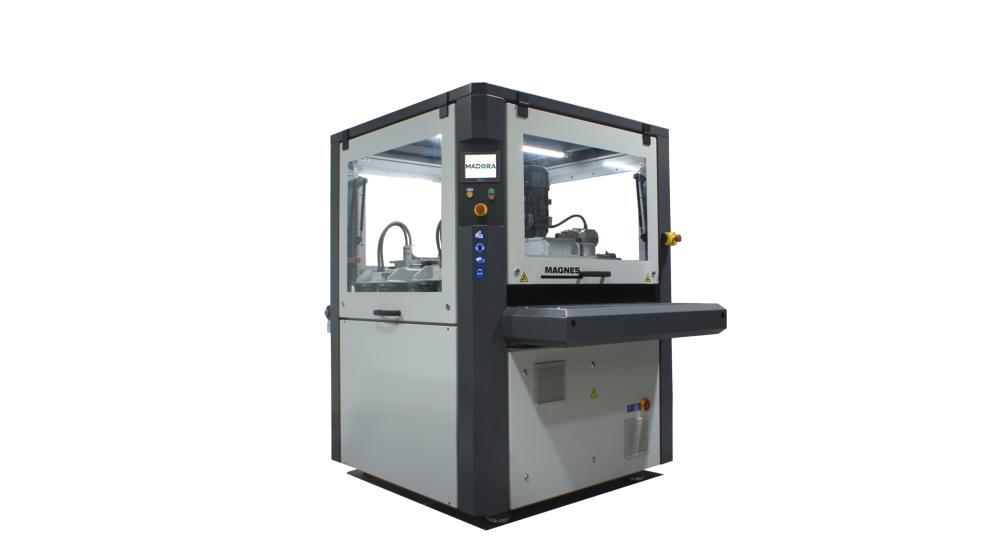

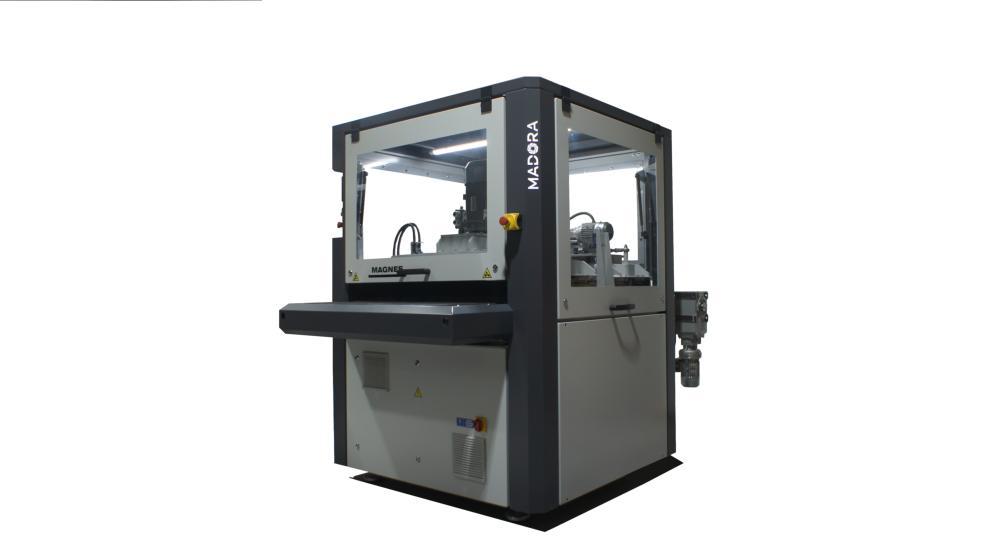

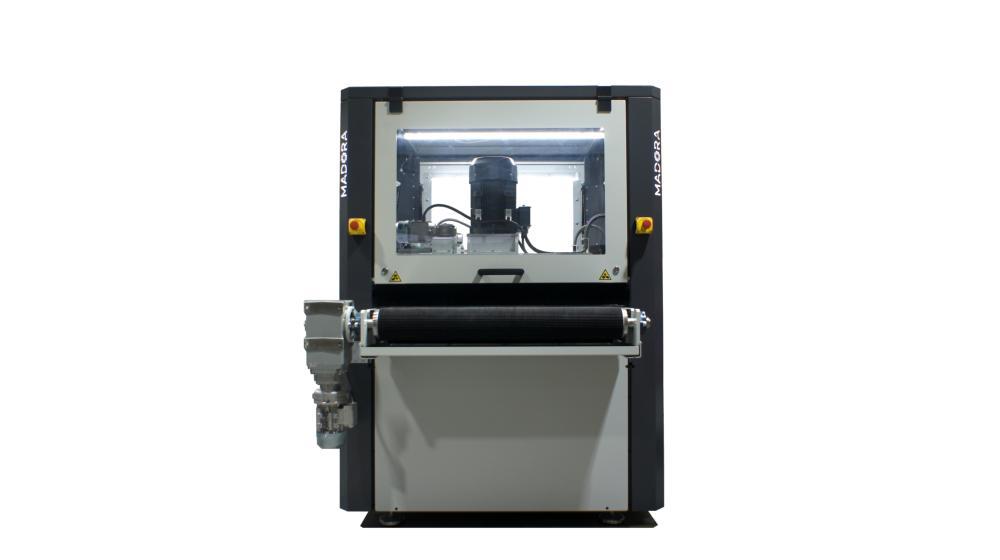

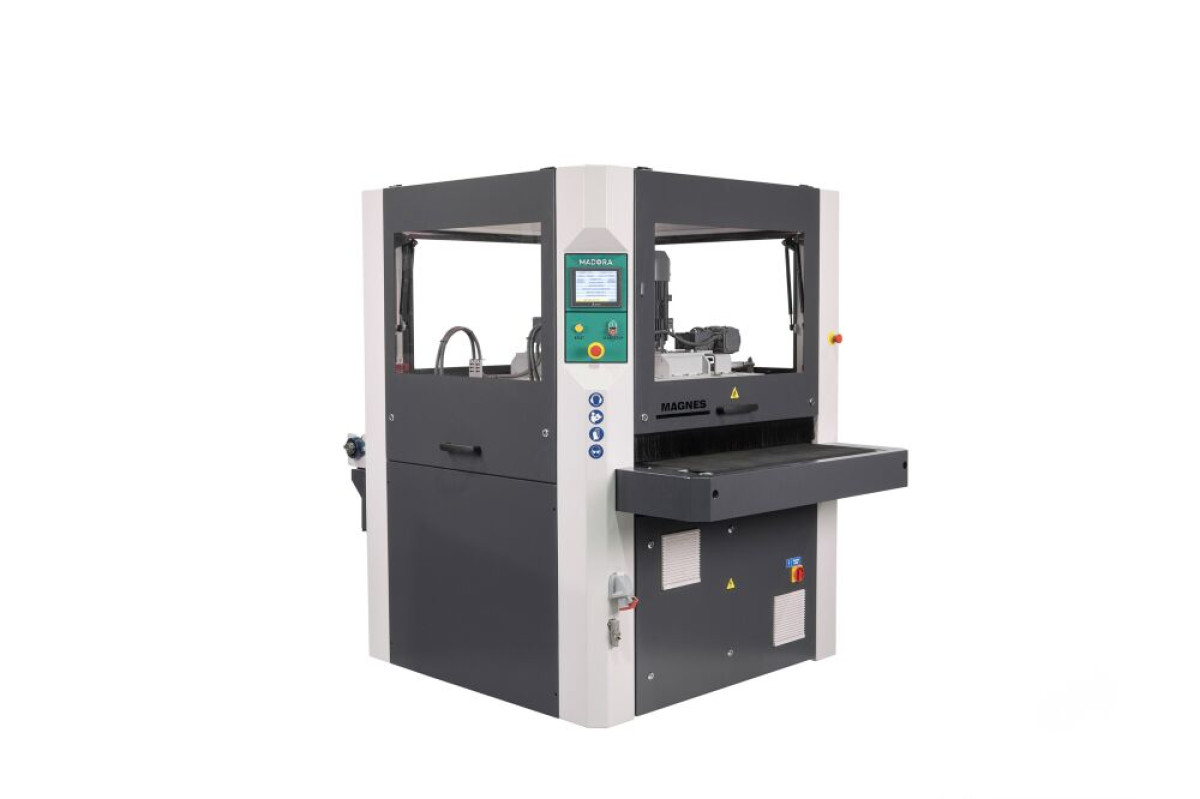

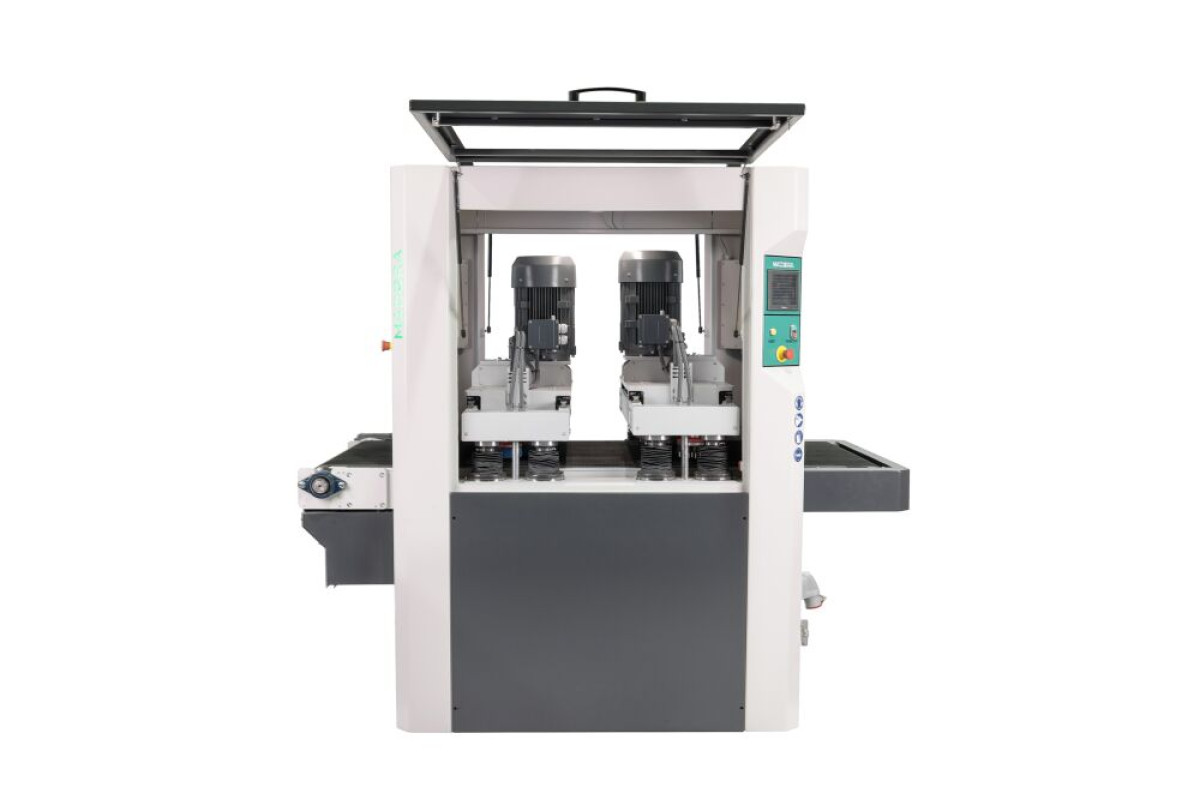

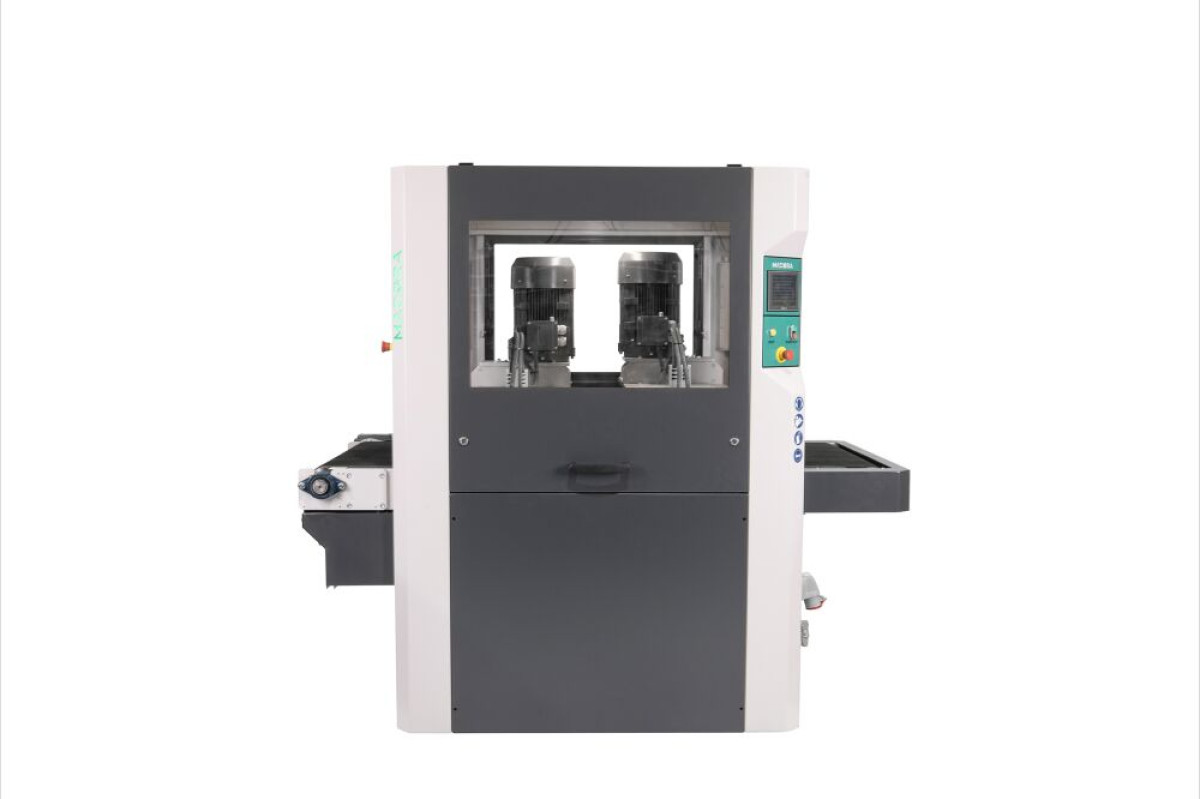

GP 1000 ZZ

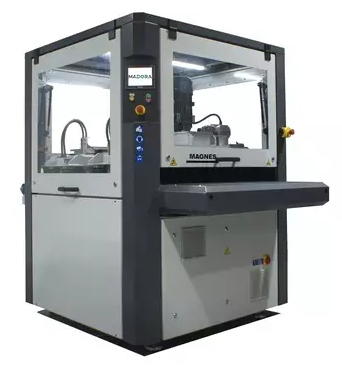

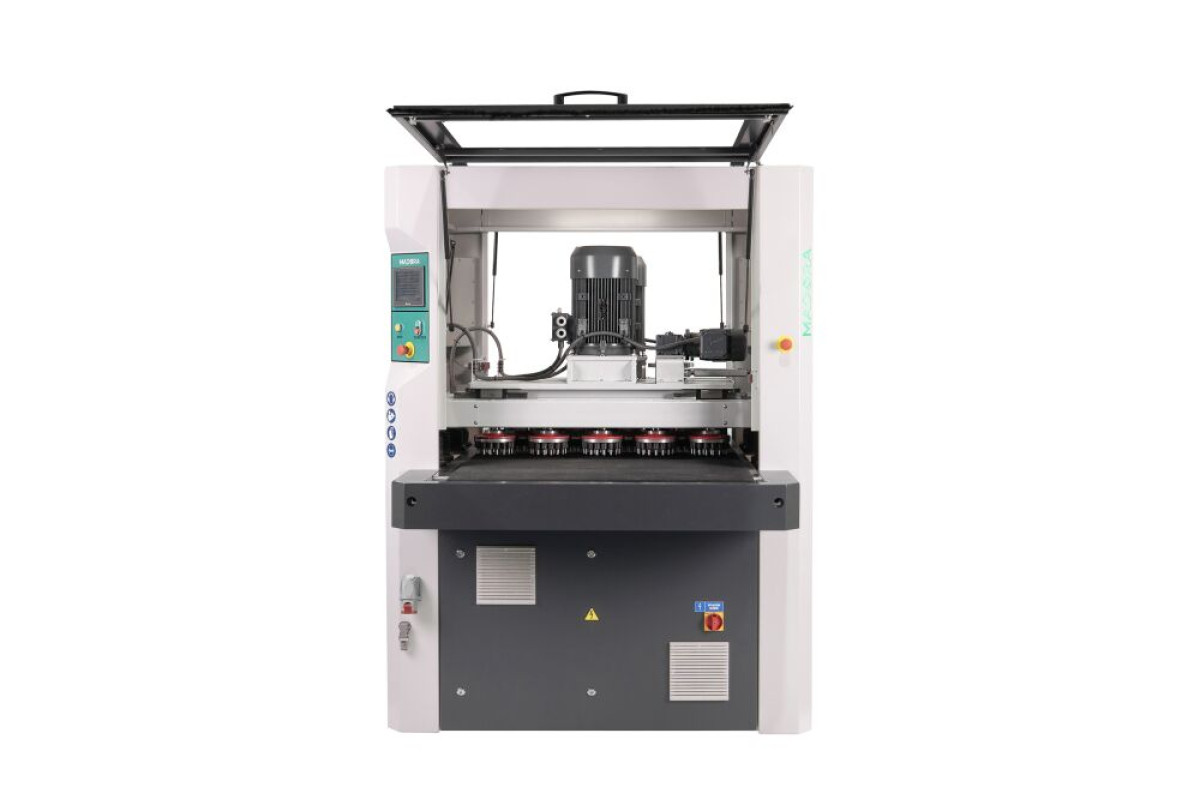

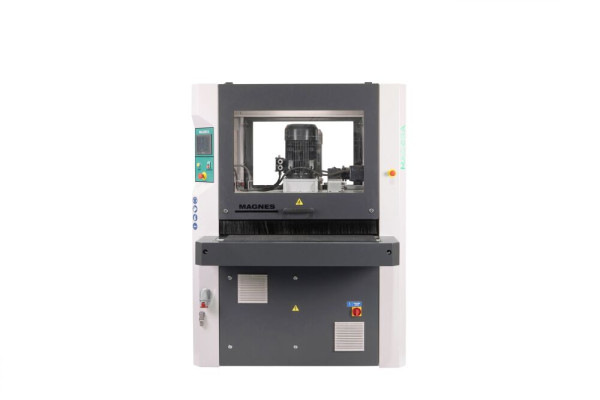

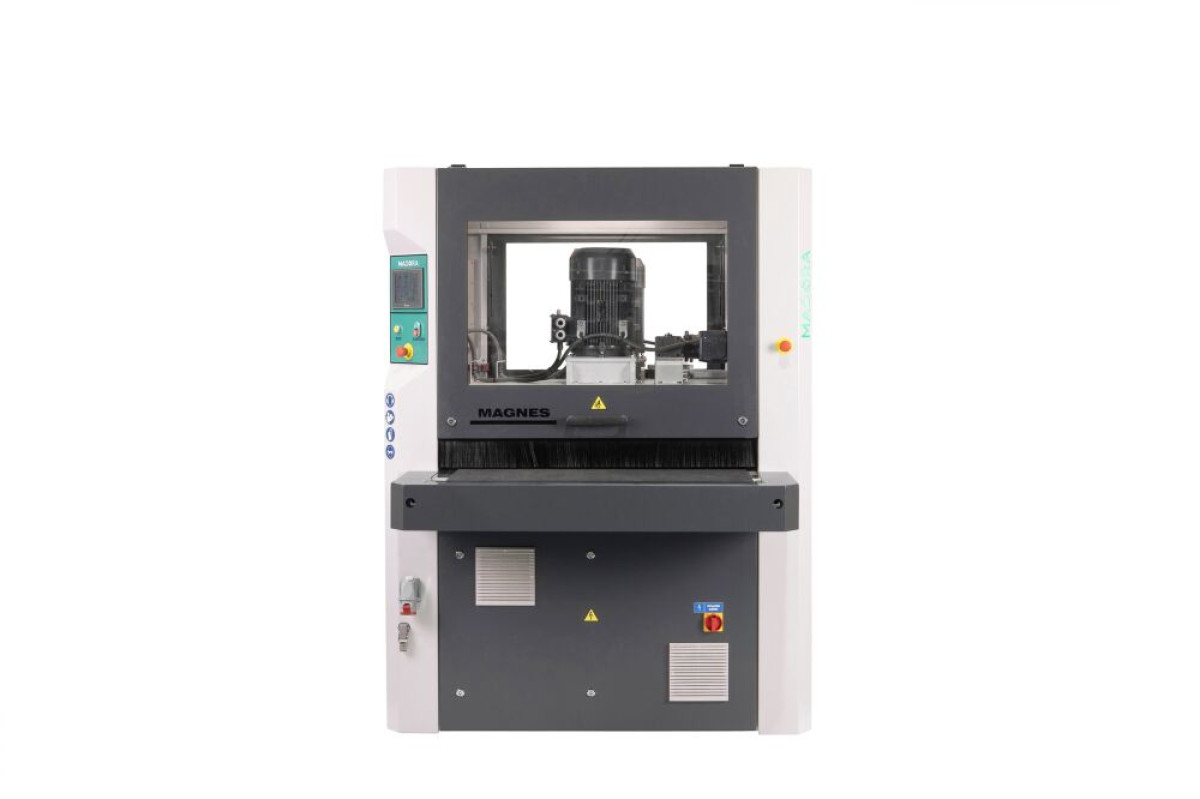

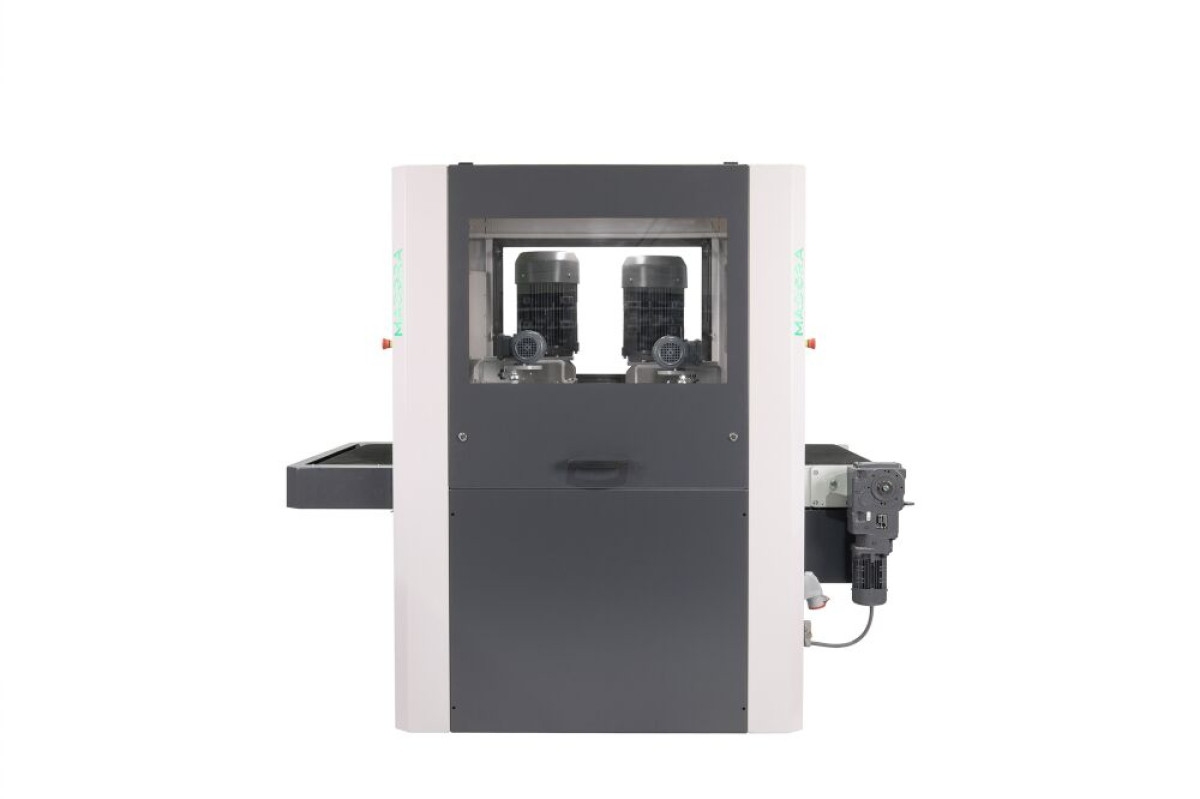

Product description
The GP1000-ZZ is an exceptional multipurpose deburring machine for cleaning sheet metal after various cutting processes. The GP 1000 ZZ deburring machine is equipped with two "Z" type oscillating and rotating units. What does this mean in practice? This means it can perform two operations at the same time: not only does it allow you to remove scale after plasma cutting, but it also makes it possible to deburr and round off the edges of workpieces after laser cutting. The wide range of machining thicknesses and widths up to 1,000 mm make it possible to machine small and large workpieces.
With the right tools, the machine is also suitable for heavy edge rounding and oxide removal. The GP 1000 ZZ deburring machine is equipped with a TFT touch-screen panel which allows the operator to fully and continuously control the machining parameters such as workpiece height, feed rate and tool rotation speed.
Technologies:

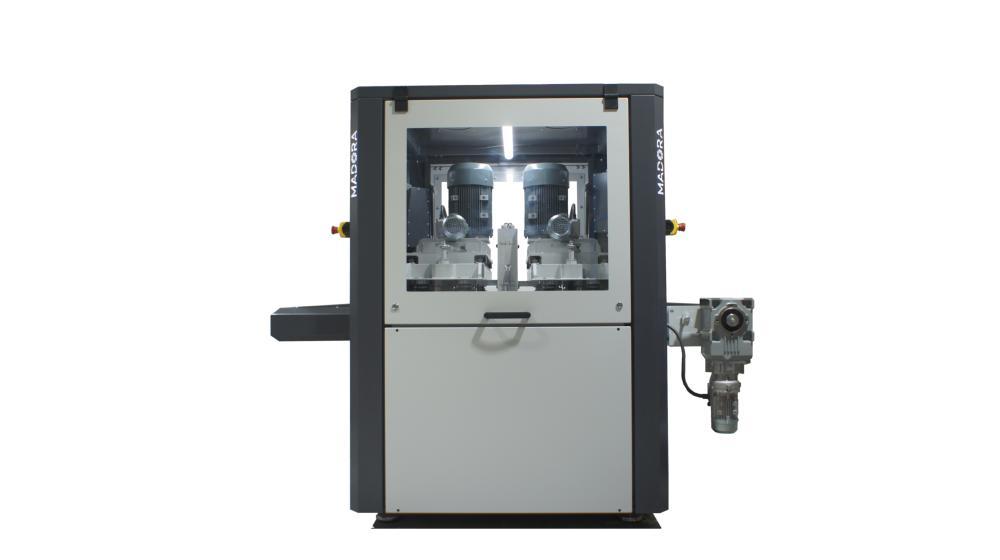

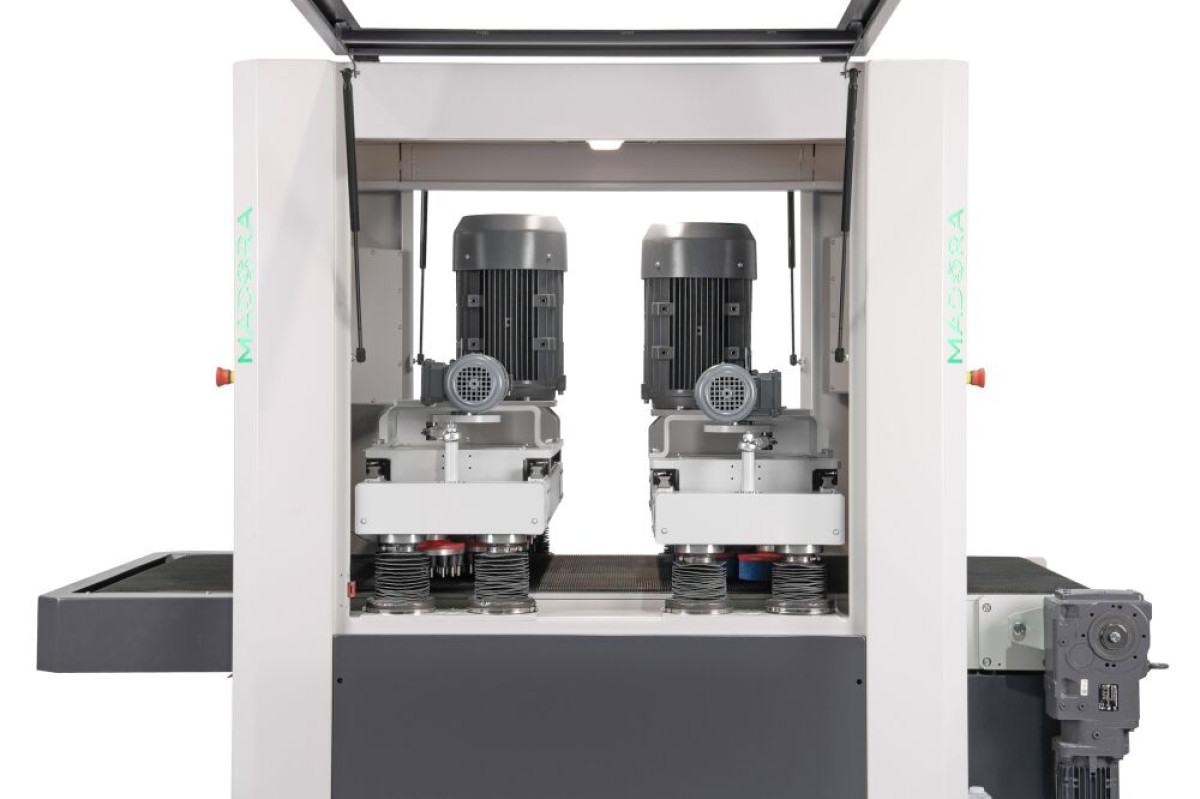

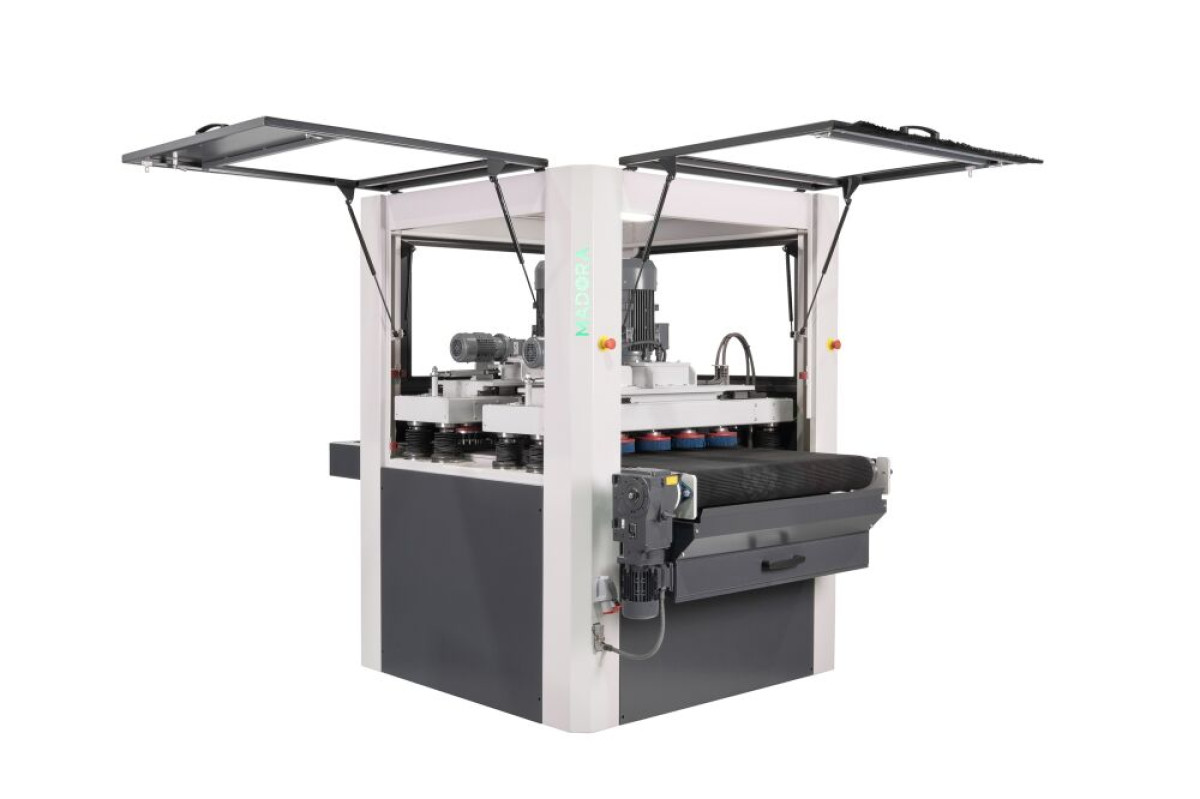

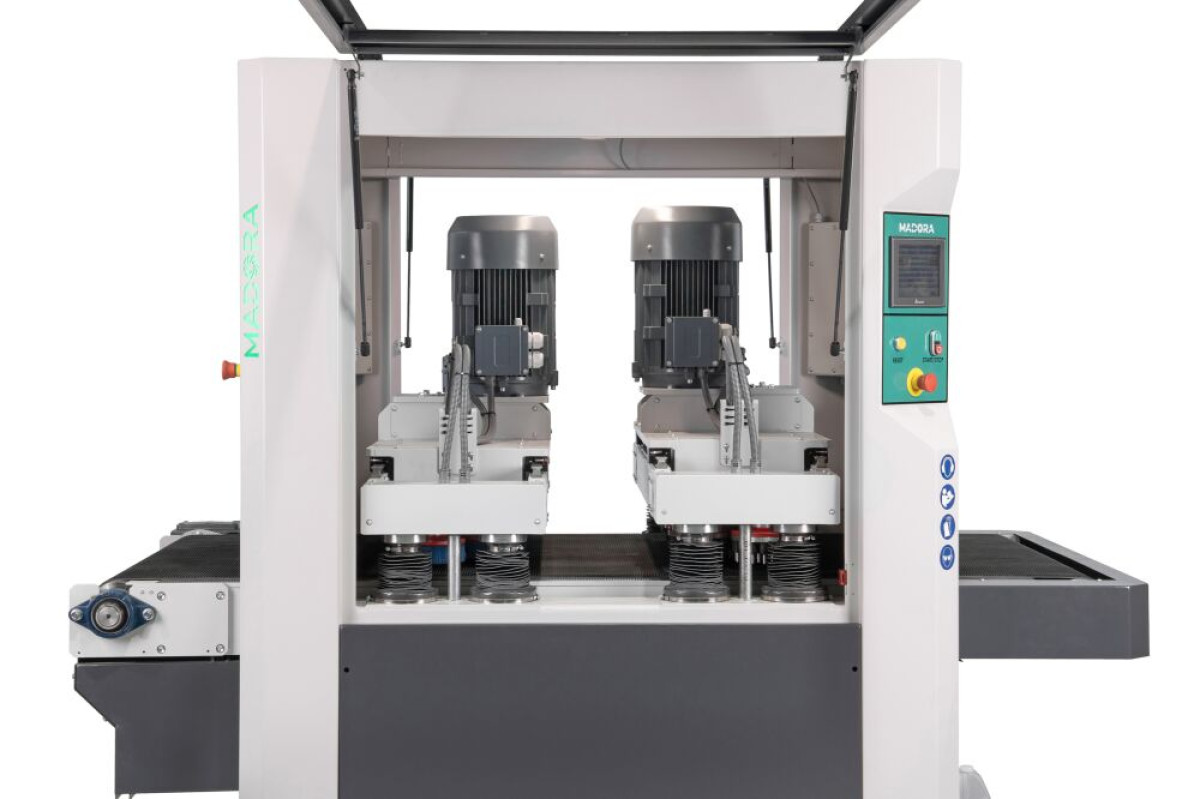

The GP 1000 ZZ is equipped with two "Z" type oscillating and rotating units. Each unit is mounted on four automatically adjustable columns, enabling a machining range of 0.5 to 50 mm. The "Z" type units can also be equipped with an inverter so that the operator can seamlessly adjust the tool rotation speed to achieve the desired machining effect.
Technical specification
| NAME |
UNIT |
GP1000-ZZ |
|
|
MACHINE FUNCTIONS |
|||
|
Descaling (deslagging) |
YES |
||
|
Deburring |
YES |
||
|
Edge rounding |
YES |
||
|
Oxide removal |
YES |
||
|
OPERATING PARAMETERS |
|||
|
Feed rate |
m/min |
0,5-2 |
|
|
Machining thickness range |
mm |
0,5-50 |
|
|
Conveyor belt width |
mm |
1000 |
|
|
Table length |
mm |
2000 |
|
|
GP1000-ZZ DIMENSIONS |
|||
|
Width |
mm |
1600 |
|
|
Height |
mm |
2000 |
|
|
Length |
mm |
2230 |
|
|
Machining unit discs |
pc. |
9 |
|
|
CONTROLS |
|||
|
TFT operator panel control |
YES |
||
|
ADDITIONAL EQUIPMENT |
|||
|
300 mm wide magnetic table |
pc. /machining unit |
1 |
|
|
Descaling discs |
pc. /machining unit |
9 |
|
|
Deburring and edge rounding discs |
pc. /machining unit |
9 |
|
|
Flap discs for heavy edge rounding |
pc. /machining unit |
9 |
|
|
Oxide removal discs |
pc. /machining unit |
9 |
|
| Magnetic plate in the table (300 mm under each unit) |
pc. /machining unit |
2 |
|

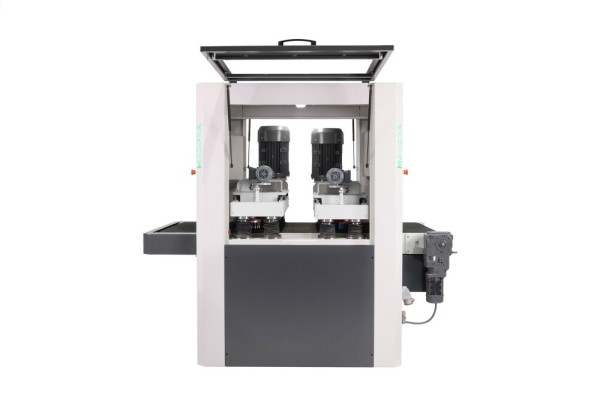

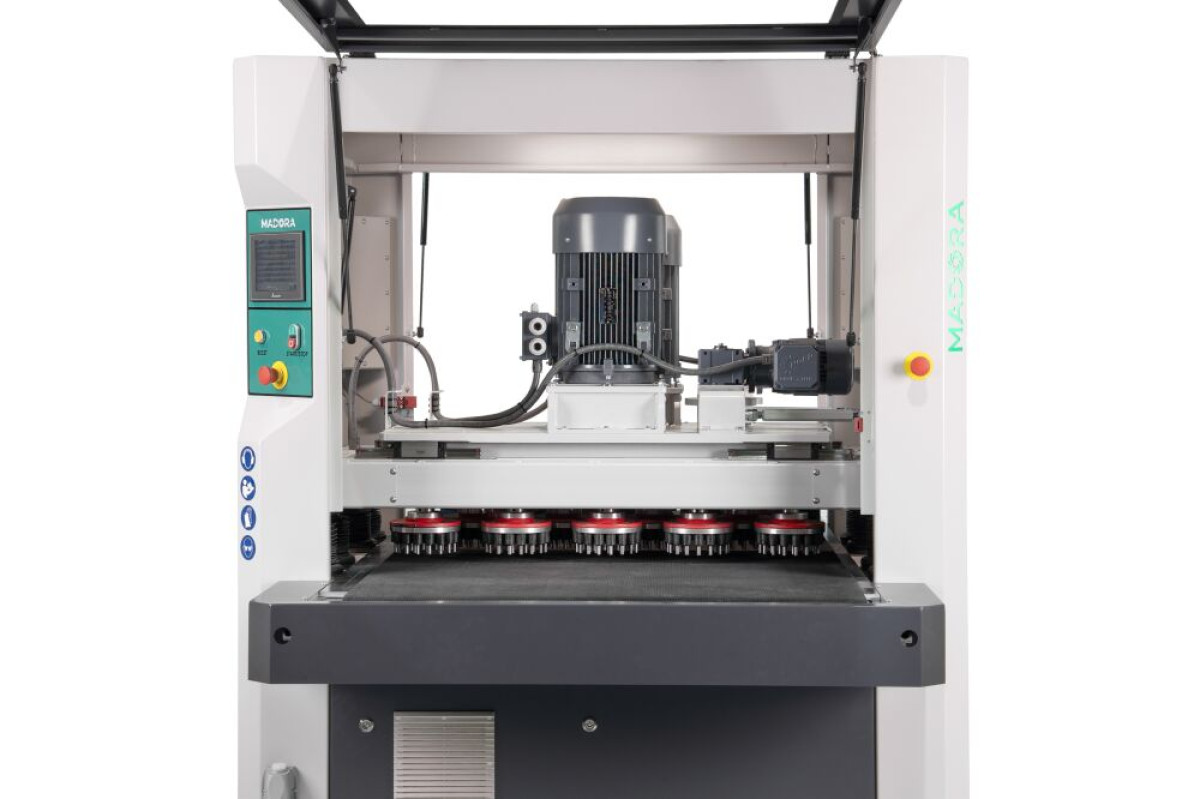

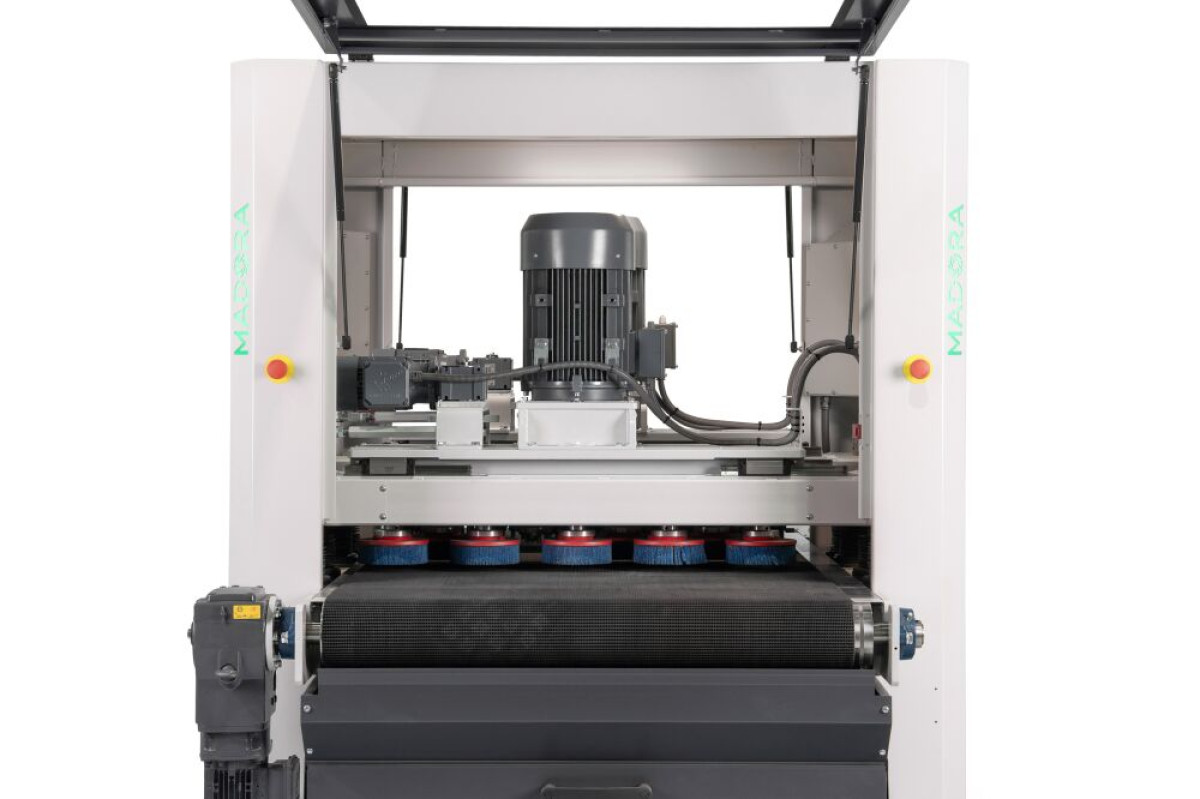

Z" type unit
The "Z" type machining unit utilises tool rotation combined with oscillating right/left motion. The unit is equipped with nine machining tools whose rotation speed can be adjusted via an inverter. The tools have a rotational speed range of 700 to 1,500 RPM. Each "Z" type unit can be equipped with the tools shown in the table below.
Descaling disc
This disk is used for the removal of heavy scale produced by plasma or oxyfuel cutting.
Deburring and edge rounding disc
Disc for light deburring after laser cutting. This disc is also used for edge rounding.
Heavy edge rounding disc
Disc for removing light burrs and for performing heavy edge rounding..
Oxide removal disc
Disc for the removal of oxides from the lateral surface of workpieces after laser cutting.
Polishing disc
Disc for polishing the surface of stainless steel.
